80% Suppressor:
Heavy Duty
17-4 SS Solvent Chamber, 2x or 3x 17-4 SS Storage Cups, all other parts 7075 Aluminum.

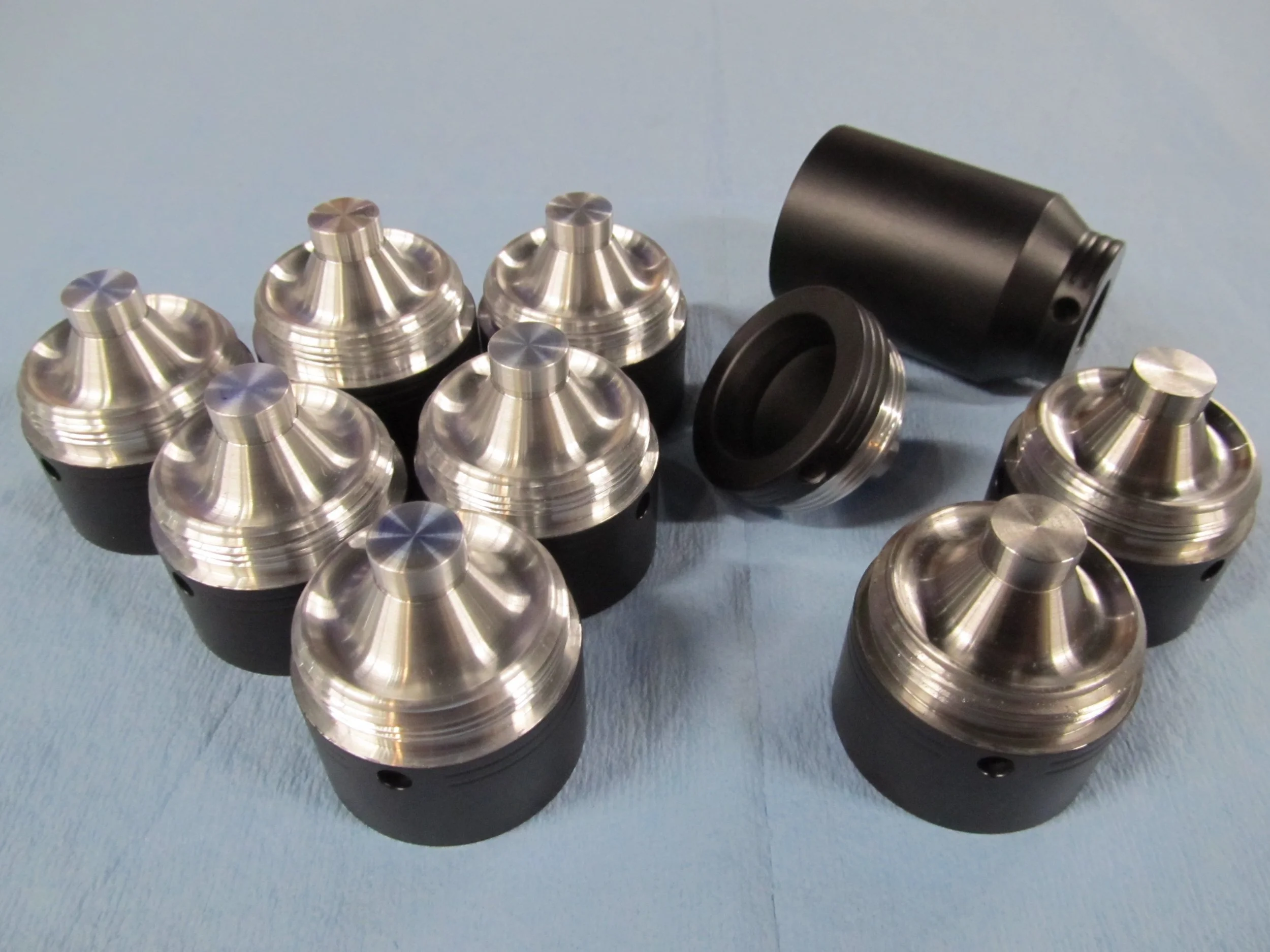

1-5/8" diameter kit, "Heavy Duty" construction, 8 cups

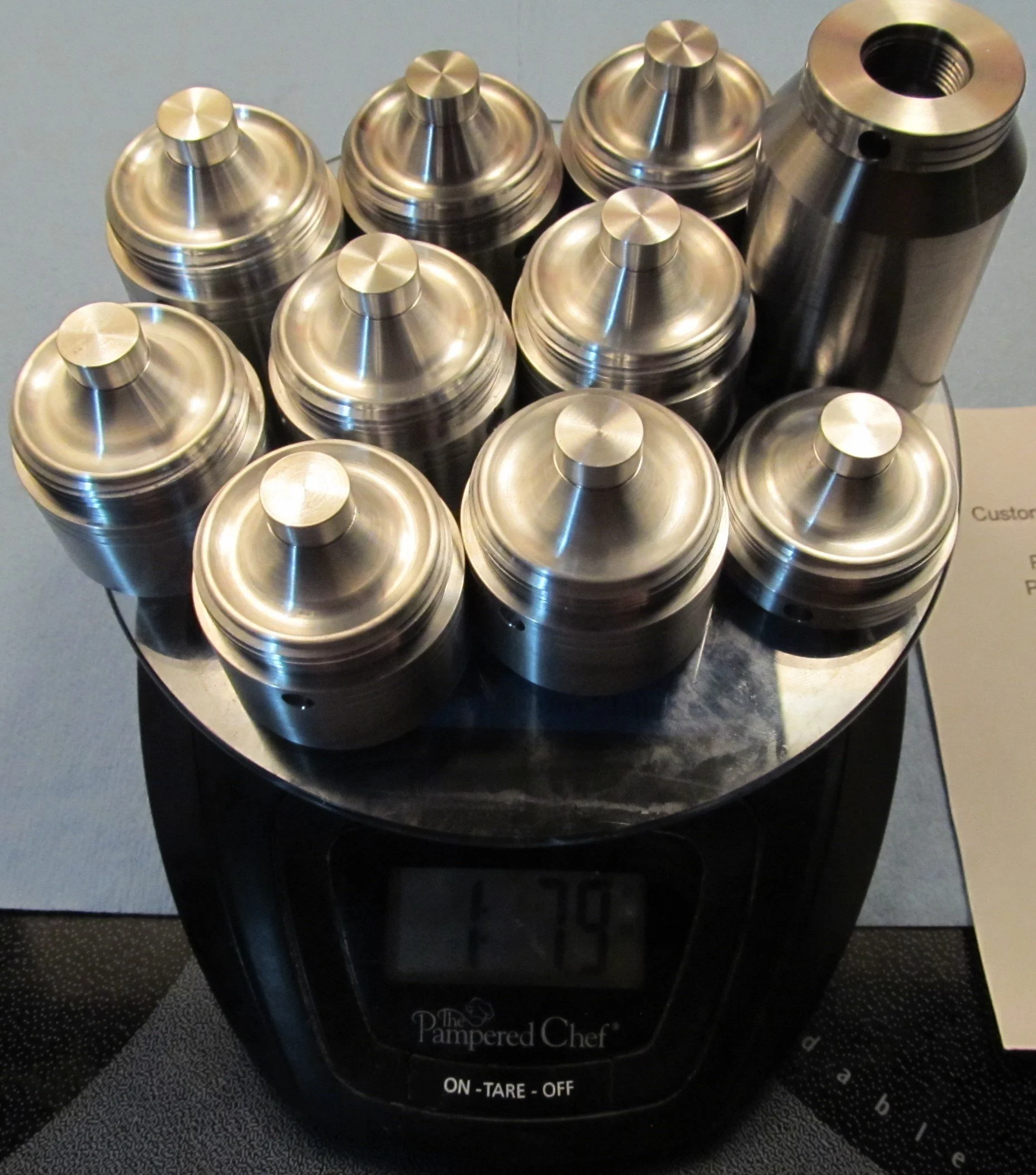

1-5/8" diameter kit, "Heavy Duty" construction, 8 cups
1-5/8" diameter kit, "Heavy Duty" construction, 8 cups

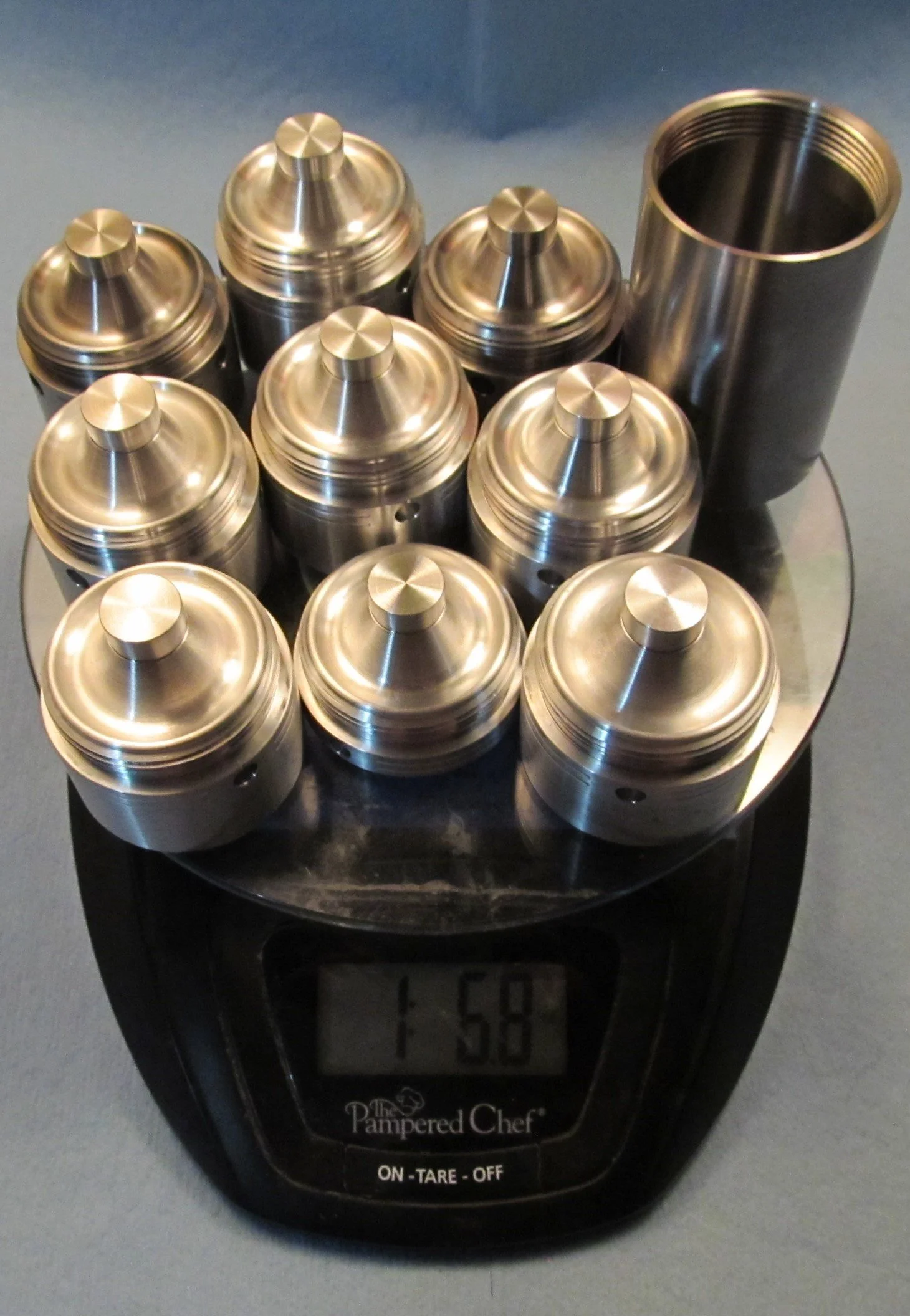

1-5/8" diameter kit, "Heavy Duty" construction, 8 cups, ASR threading

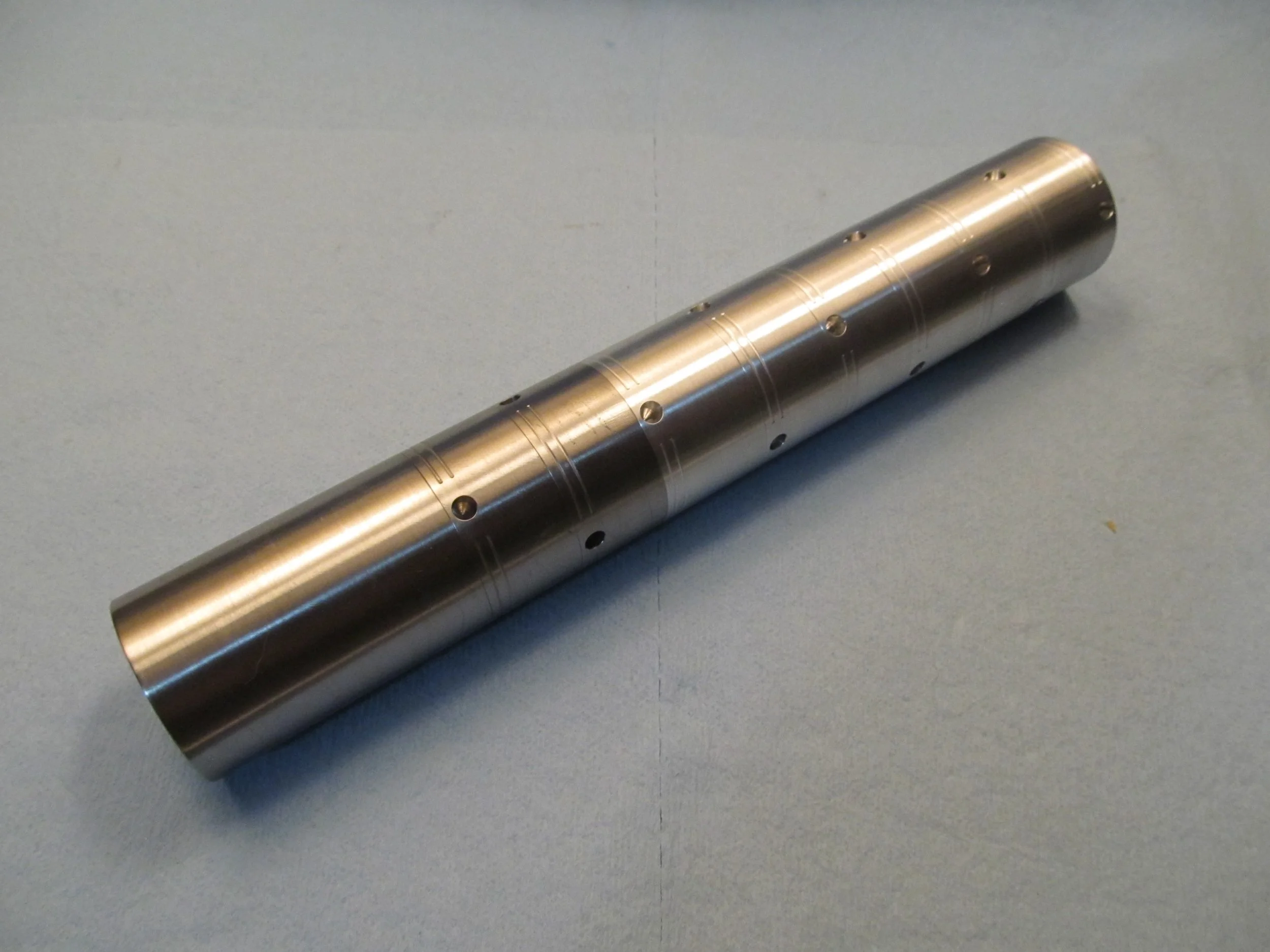

1-5/8" diameter kit, "Heavy Duty" construction, 8 cups, ASR threading

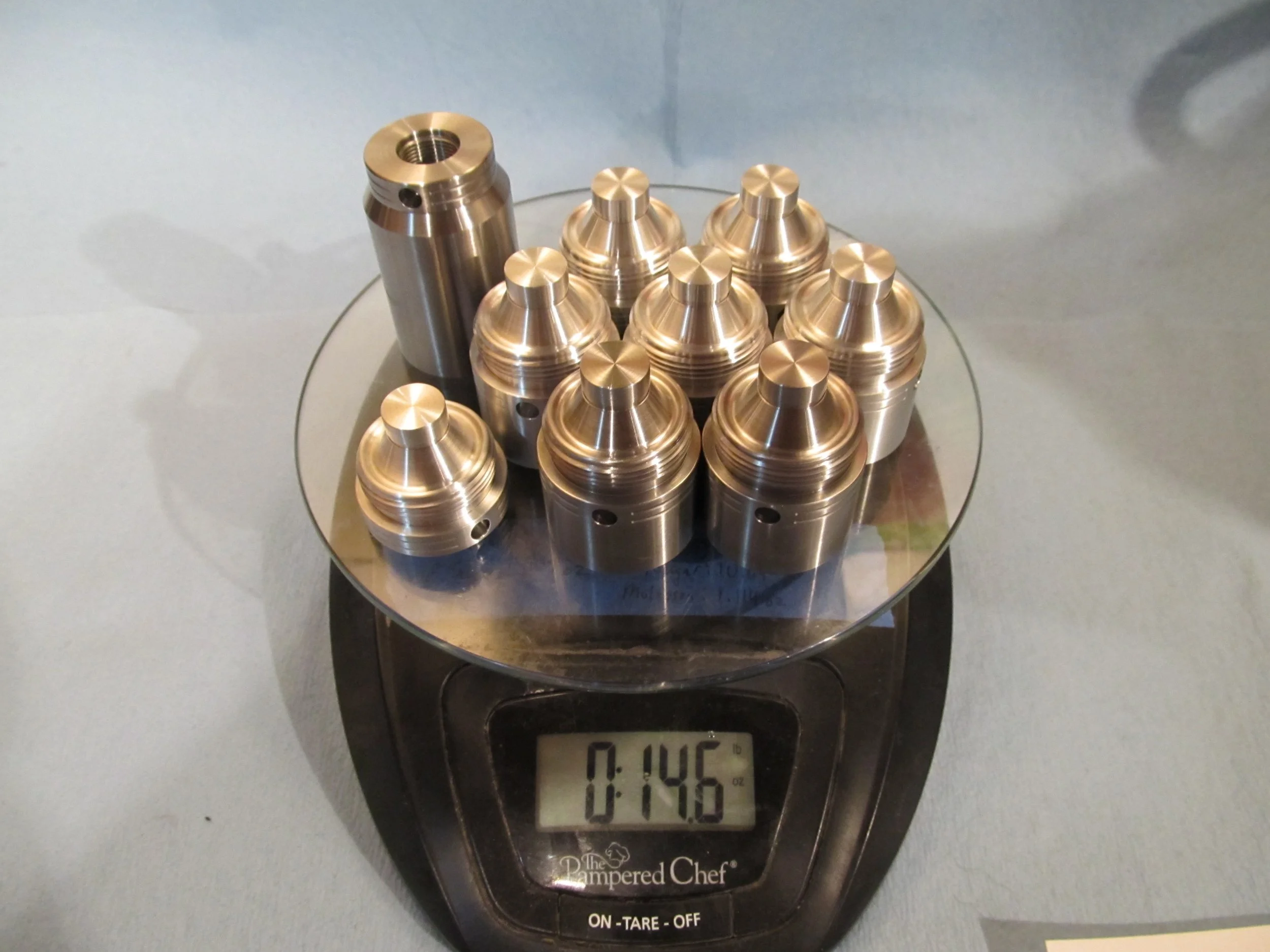

1-1/4" diameter kit, "Heavy Duty" construction, 8 cups

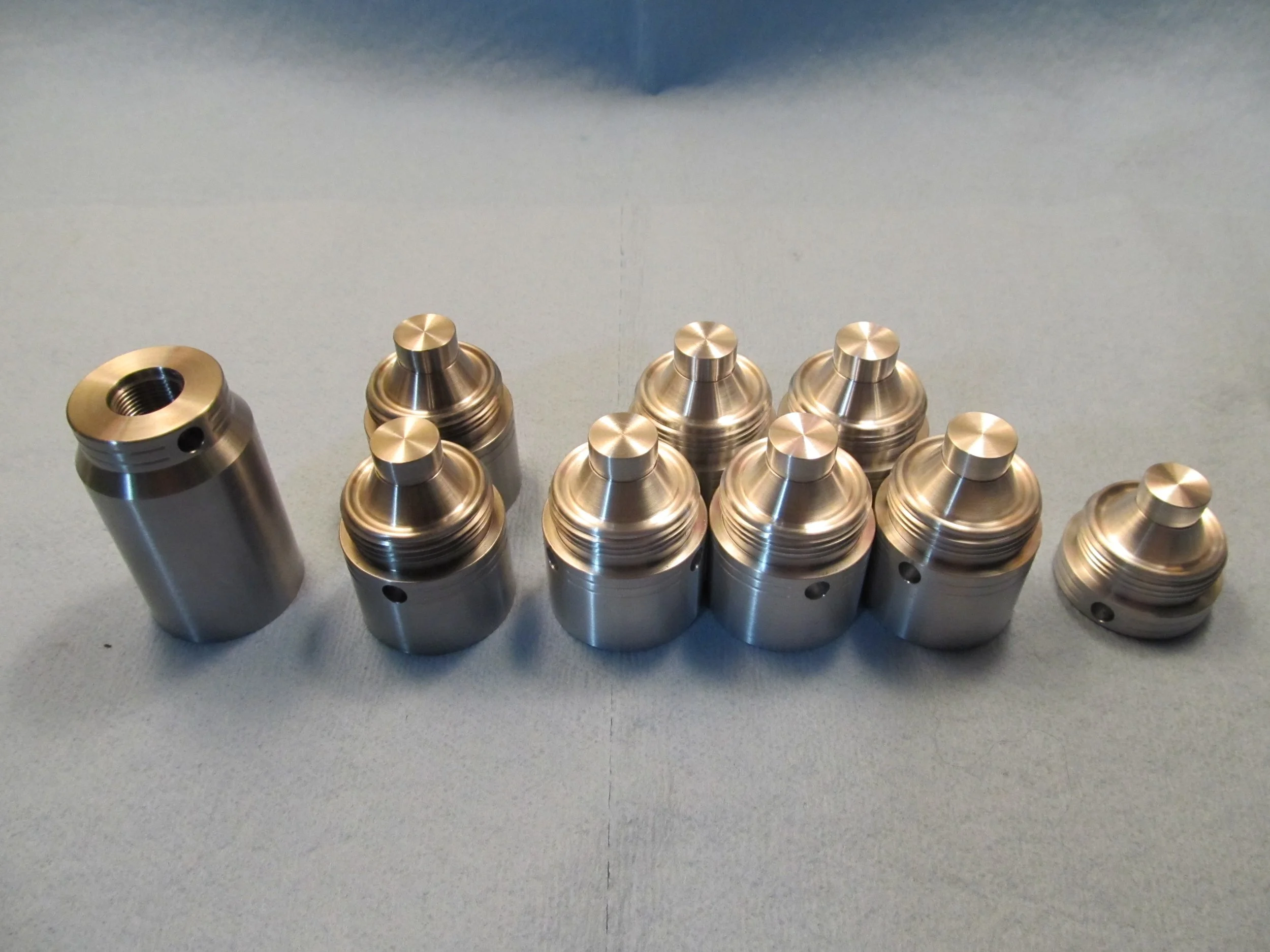

1-1/4" diameter kit, "Heavy Duty" construction, 8 cups

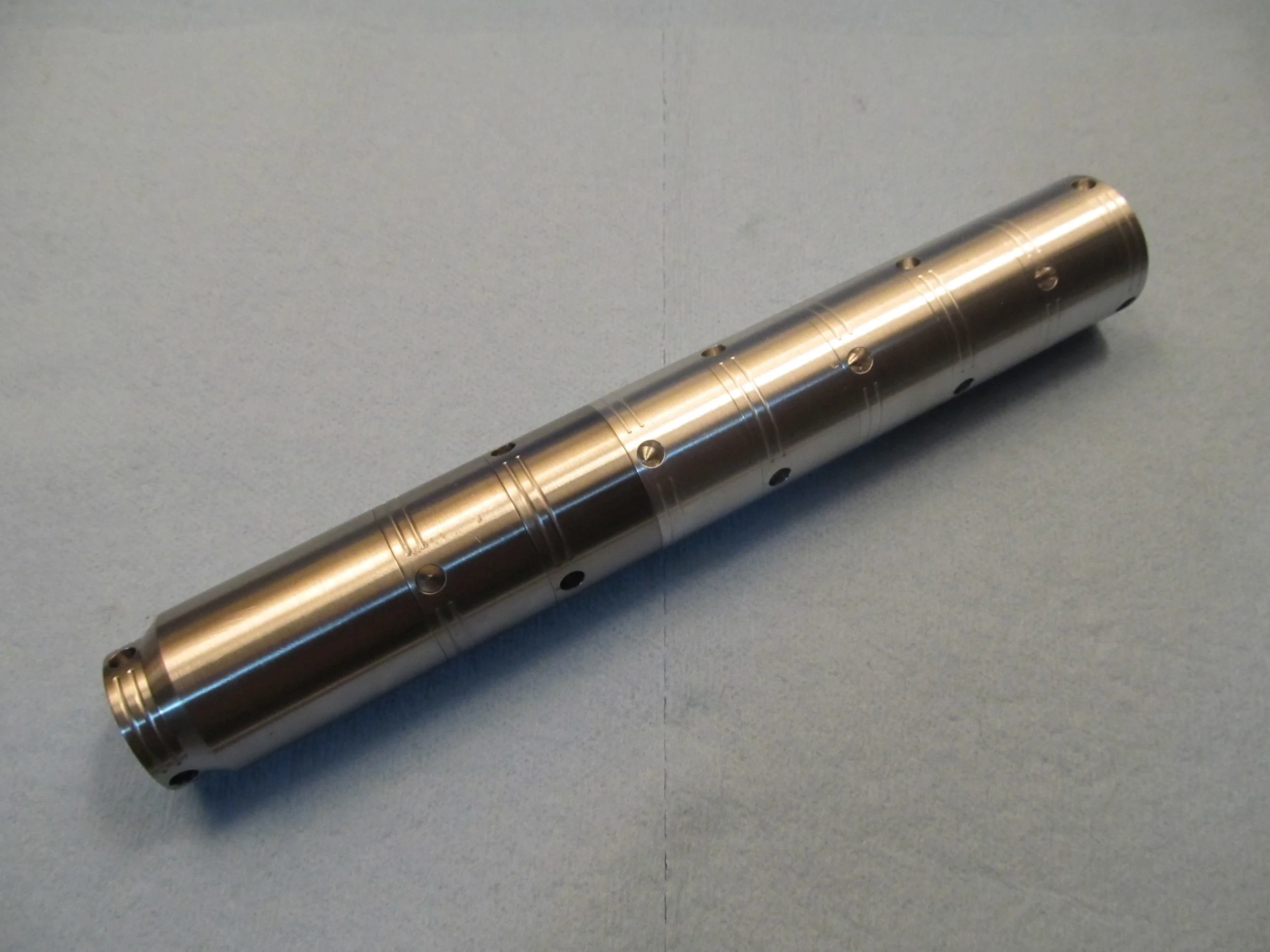

1-1/4" diameter kit, "Heavy Duty" construction, 8 cups
Proprietary tools are not required. Pin punches or a #4 spanner (or two) are all that is needed.
Interior lightening cuts. This provides a place for the spanner holes to go
Cut-Away views of the different sized reservoirs.
Different threading options: (L) custom 7/8" (C) 5/8" (R) 1/2"
3d printed vice blocks will be included with every order or contact us for the STL file (free)
3d printed vice blocks will be included with every order or contact us for the STL file (free)
Storage Cup Racks also available
Storage Cup Holders also available
All prices subject to change due to material cost differences
1-5/8” Diameter
Heavy Duty, 6 Cups - SS Solvent Chamber (2.500), 2x SS Storage Cups, 4x AL Storage Cups (0.875), AL Cap (0.300) - 8.050 OAL - 20.4oz - $320 shipped to you.
Heavy Duty Plus, 6 Cups - SS Solvent Chamber (2.500), 3x SS Storage Cups, 3x AL Storage Cups (0.875), AL Cap (0.300) - 8.050 OAL - 22.7oz - $340 shipped to you.
Heavy Duty, 8 Cups - SS Solvent Chamber (2.500), 2x SS Storage Cups, 6x AL Storage Cups (0.875), AL Cap (0.300) - 9.800 OAL - 23.2oz - $370 shipped to you.
Heavy Duty Plus, 8 Cups - SS Solvent Chamber (2.500), 3x SS Storage Cups, 5x AL Storage Cups (0.875), AL Cap (0.300) - 9.800 OAL - 25.6oz - $390 shipped to you.
Heavy Duty, 10 Cups - SS Solvent Chamber (2.500), 2x SS Storage Cups, 8x AL Storage Cups (0.875), AL Cap (0.300) - 11.550 OAL - $425 shipped to you.
Heavy Duty Plus, 10 Cups - SS Solvent Chamber (2.500), 3x SS Storage Cups, 7x AL Storage Cups (0.875), AL Cap (0.300) - 11.550 OAL - $445 shipped to you.
1-1/4” Diameter
Heavy Duty, 6 Cups - SS Solvent Chamber (2.055), 2x SS Storage Cups, 4x AL Storage Cups (0.875), AL Cap (0.300) - 7.605 OAL - $270 shipped to you.
Heavy Duty Plus, 6 Cups - SS Solvent Chamber (2.055), 2x SS Storage Cups, 4x AL Storage Cups (0.875), AL Cap (0.300) - 7.605 OAL - $280 shipped to you.
Heavy Duty, 8 Cups - SS Solvent Chamber (2.055), 2x SS Storage Cups, 6x AL Storage Cups (0.875), AL Cap (0.300) - 9.355 OAL - $315 shipped to you.
Heavy Duty Plus, 8 Cups - SS Solvent Chamber (2.055), 3x SS Storage Cups, 5x AL Storage Cups (0.875), AL Cap (0.300) - 9.355 OAL -$325 shipped to you.
Heavy Duty, 10 Cups - SS Solvent Chamber (2.055), 2x SS Storage Cups, 8x AL Storage Cups (0.875), AL Cap (0.300) - 11.105 OAL - $360 shipped to you.
Heavy Duty Plus, 10 Cups - SS Solvent Chamber (2.055), 3x SS Storage Cups, 7x AL Storage Cups (0.875), AL Cap (0.300) - 11.105 OAL - $370 shipped to you.
